BlackBerry Torch BOM $171.05 Insides BlackBerry with Some Droid X

by


The new BlackBerry Torch 9800 carries a Bill of Materials (BOM) of $171.05, according to a dissection and cost model from iSuppli Corp. On the outside it's packed with new user interfaces, but on the inside its pure evolutionary BlackBerry, delivering features that match Android and iPhone.

TheBlackBerry Torch 9800 contains a GPS Integrated Circuit (IC) from CSR plc, the first time iSuppli has seen this new chip in a product teardown. On the other hand, the BlackBerry Torch's Radio Frequency (RF), power amplifier and power management subsystems are similar or virtually identical to those of a previous member of the BlackBerry line, the Bold 9700, which had been torn down in the past by iSuppli.

In terms of specs and size, the BlackBerry Torch's display is very similar to that of the BlackBerry Storm2 9550. Furthermore, the Torch employs the same Microelectromechanical Systems (MEMS) accelerometer by Analog Devices Inc. used in the Storm2 9550.

The BlackBerry Torch 9800 integrates Texas Instruments Inc.'s WL1271x WLAN/BlueTooth IC, which can be found in products including Motorola Inc.'s Droid X and Microsoft Corp.'s Kin 2.

When adding in an estimated manufacturing cost of $12, the TBlackBerry Torch 's combined production and BOM cost amounts to $183.05.

The most expensive subsystem in the BlackBerry Torch 9800 is the LCD and touch screen display module section, at a price of $34.85, representing 20.4 percent of the product's BOM, according to iSuppli's semiconductor costing estimate. The display is a 3.2-inch diagonal TFT LCD with a 480 by 360 pixel resolution. While it was not possible to identify from a teardown analysis the supplier of the display, RIM in the past has employed displays from Samsung Mobile Display, Toshiba Mobile Display Co. Ltd. and Sharp, according to mobile market research from Vinita Jakhanwal, principal analyst, small/medium displays for iSuppli. The touchscreen uses capacitive technology and includes a Synaptics Inc. controller IC. And although the supplier of an entire module is rarely identifiable from a teardown analysis, the controller IC indicates that Synaptics is a potential supplier of the turnkey solution.

Coming in at a close second in terms of cost is the memory subsystem, at $34.25, amounting to 20 percent of the Bill of Materials. In the individual BlackBerry Torch 9800 torn down by iSuppli, Samsung supplied a 4Gbyte eMMC NAND flash memory device, plus an 8Gbit NAND flash and 4Gbit Mobile Double Data Rate (DDR) SDRAM SanDisk Corp. contributed a 4Gbyte removable Micro SD memory card.

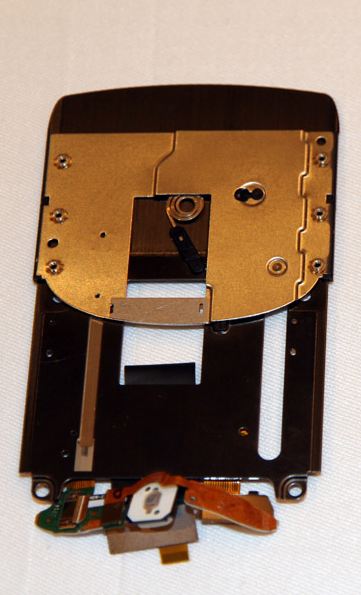

The mechanical/electromechanical portions of the BlackBerry Torch 9800 , including the printed circuit boards and the enclosure plastics and metals, came in third at an estimated cost of $23.35, representing 13.7 percent of the BlackBerry Torch's BOM.

Next on the cost ranking is the applications processor/baseband section at $15, or 8.8 percent of the BOM. This section is dominated by the communications processor, which features an integrated baseband from Marvell Technology Group Ltd.
Coming in at fifth in terms of cost is the RF transceiver and power amplifier section, at $13.90, or 8.1 percent of the BOM cost. Infineon Technologies AG's PMB5701 tri-band RF transceiver is featured in the section, along with Renesas Electronics Corp.'s R2A60177BG quad-band RF transceiver and its RPF59001B power amplifier module.

The user interface electronics subsection comes in sixth, at $12.40, or 7.2 percent of the BOM. This section includes STMicroelectronics NV's STV0987 video/image processor that supports mobile imaging. It also features Texas Instruments Inc.'s TLV320AIC36IZQERaudio codec, CrucialTec Co. Ltd.'s optical trackpad assembly and the Analog Devices 3-axis accelerometer.
Other notable sections include the Bluetooth/WLAN/GPS area, with a price of $10.60 and 6.2 percent share of the Bill of Materials. Components in this subsystem include the Texas Instruments WL1271A single-chip Bluetooth/WLAN/FM transmitter/receiver and the CSR GSD4t-9800 GPS receiver.
Finally, there's the power management section, at $4.90, or 2.9 percent of the BOM. This subsystem includes the Texas Instruments TPS65856 power management IC.

For an online version of this release that includes teardown photos, please visit: http://www.isuppli.com/Teardowns-Manufacturing-and-Pricing/News/Pages/BlackBerry-Torch-Carries-171-05-Bill-of-Materials-iSuppli-Teardown-Reveals.aspx.
